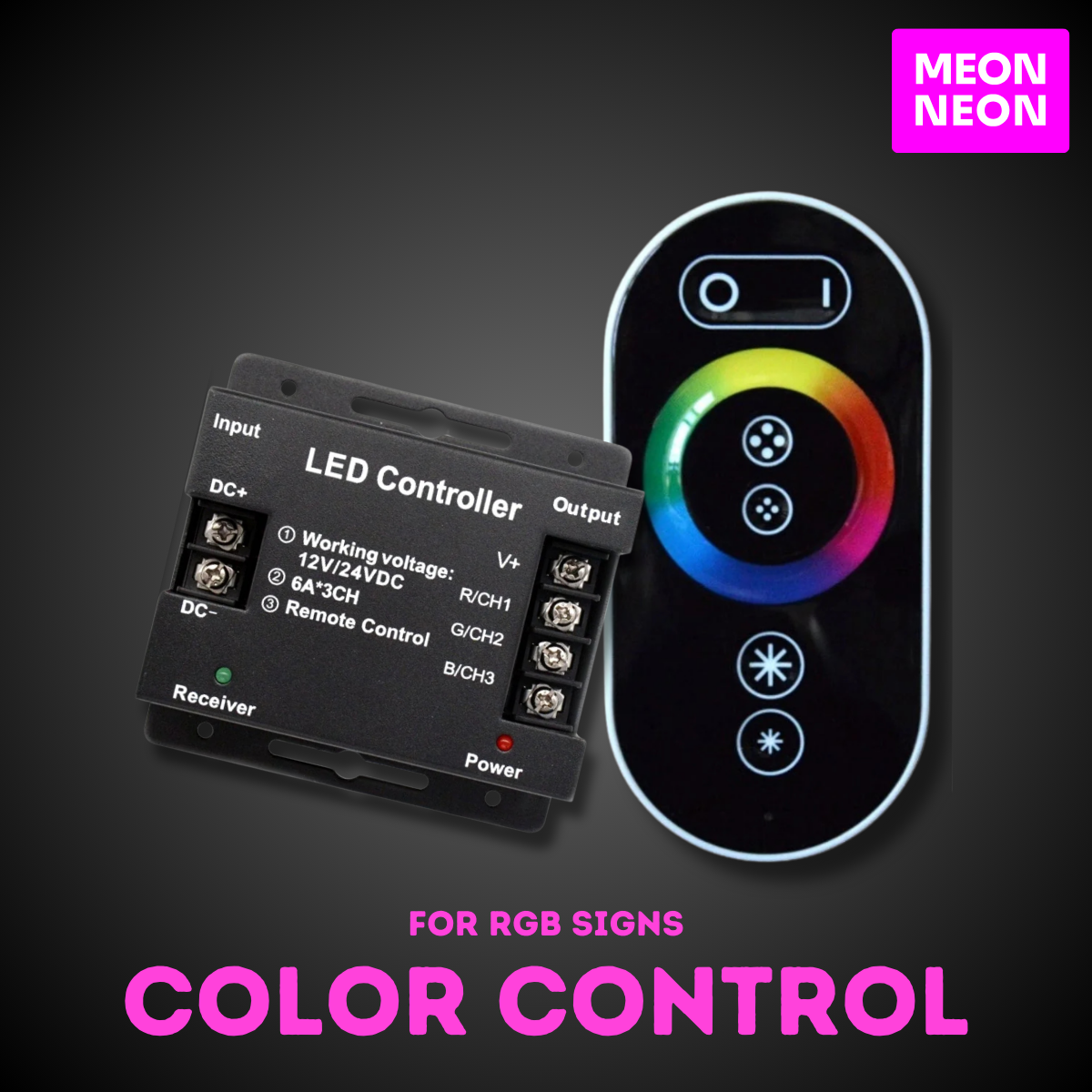

LED Remote Control & Receiver Bundle (RGB Model)

RECOMMENDED WITH PURCHASE: DC Wire Cables for Reciever

What's Included:

• RF Remote Control with full color selection
• RGB Receiver/Controller Box
• **BATTERIES NOT INCLUDED(AAA)**
• Quick start guide


RGB Control Features:

• Full Color Spectrum - Access to 16 million colors
• Pre-Set Colors - Quick access to popular color choices
• Color-Changing Modes - Dynamic transitions and effects
• Speed Adjustment - Control animation timing
• Brightness Control - Dim from 10% to 100%
• Pattern Selection - Multiple pre-programmed effects
• Memory Function - Remembers last setting when powered off
• 30ft+ Control Range - Operate from across the room
• Simple Installation - Plug-and-play setup

How It Works:

The intuitive remote puts complete color control at your fingertips. Select from millions of colors, adjust brightness, choose dynamic patterns, and control animation speed - all with simple button presses. The receiver box connects between your sign and power supply, translating remote commands into stunning visual displays.

Technical Specifications:

• Input/Output: DC 12V-24V
• Max Load: 6A
• Control Distance: Up to 30+ feet
• Signal Type: RF (radio frequency)
• Operating Temperature: -20°C to 45°C
• Remote Battery: AAA (not included)
• Receiver Dimensions: 3.5" x 2" x 0.75"

Compatible With:

• All Meon Neon RGB color-changing signs
• Most 12V-24V RGB LED strip lighting
• Multiple signs (one receiver required per sign, or purchase a splitter)

Perfect For:

• Replacing lost or damaged remotes/receivers
• Upgrading existing RGB signs with better control
• Adding remote capability to RGB signs
• Backup controllers for commercial installations
• Multiple sign setups (one bundle per sign)

Installation:

1. Connect receiver between power supply and RGB sign
2. Ensure all connections are secure
3. Plug power supply into outlet
4. Test remote functions
5. Mount receiver in discreet location if desired

Color Modes Include:

• Solid color hold
• Smooth color fade
• Color jump transitions
• Flash modes
• Strobe effects
• Custom speed control for all modes

Important Note: This RGB bundle is specifically designed for color-changing RGB LED signs. It will NOT work with:

• Standard single-color signs (use Standard Dimming Bundle instead)
• Rainbow FlowLED individually addressable signs (requires specialized controller)

Need Just One Component?

Individual remotes and receivers are available separately. Contact us if you're unsure about compatibility with your existing sign.

Warranty & Support:

• Warranty: 1-year manufacturer warranty
• Technical Support: Our team is available to help with setup and programming questions
• Replacement Guarantee: These are the exact replacements for all Meon Neon RGB signs

Lost Your Original Remote? This is the exact replacement controller included with all Meon Neon RGB color-changing signs.

Questions About Compatibility? Contact our support team at (720) 593-8389 or hello@meonneon.com - we're here to help ensure you get the right controller for your sign.
